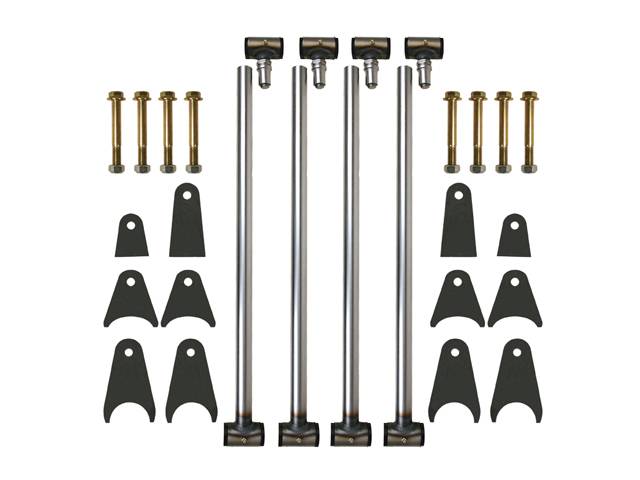

Universal Triangulated 4 Link
universal triangulated 4-link.jpg

This Triangulated 4-Link comes with extra long 4-link tubes to allow you to cut them down to your preferred length.
Polyurethane bushings and zerk fittings keep things properly lubed and squeak free. Threaded 3/4"-16 studs and 4-link tubes are TIG welded for maximum strength. All mounting tabs are CNC laser cut from 1/4" plate. CNC machined threaded bungs fit perfectly into the 4-link tubes. Zinc plated, Grade 8 mounting hardware included.
this is designed to use your front leaf spring mount or you can purchase additional tabs or mounts below.

















 4 Link Tabs
4-link triangulated axle tab.jpg4-link flat tab long.jpg4-link flat tab short.jpg

These tabs are 1/4" thick and accept a 9/16" bolt

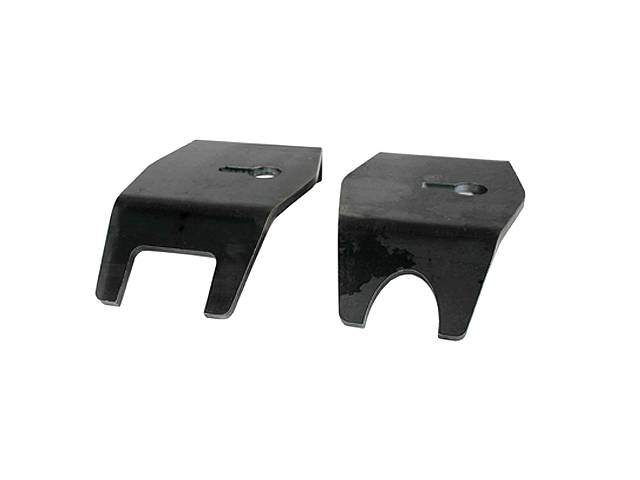

bag bar backets.jpg

Bag Bar Brackets
$40.00
Qty:

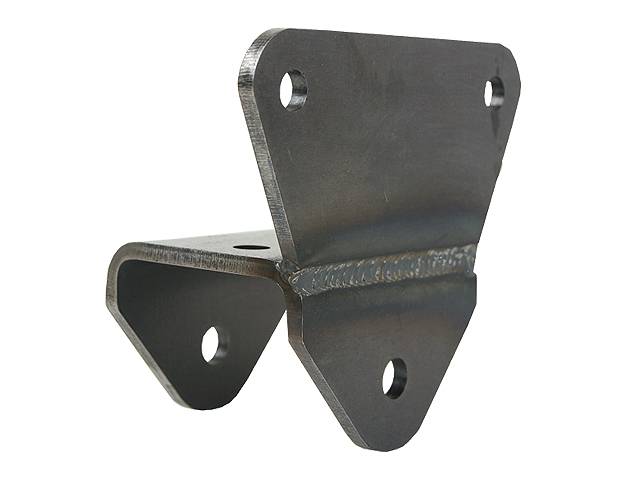

4 link side frame.jpg  4 Link Side Frame Mount (Pair)
$65.00

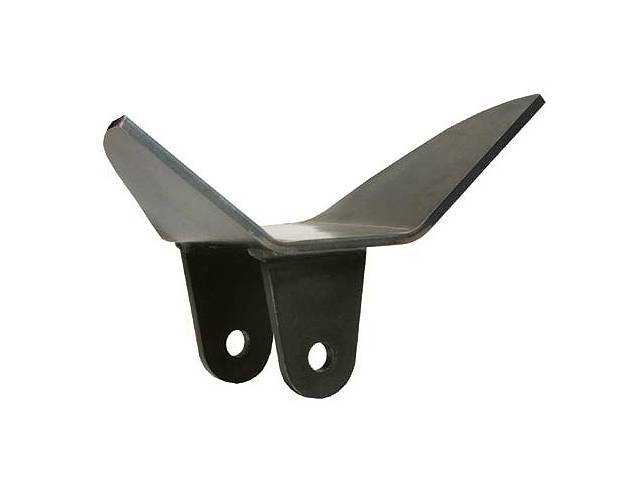

4 link under frame1.jpg

4 Link Under Frame Mount (Pair)
$65.00

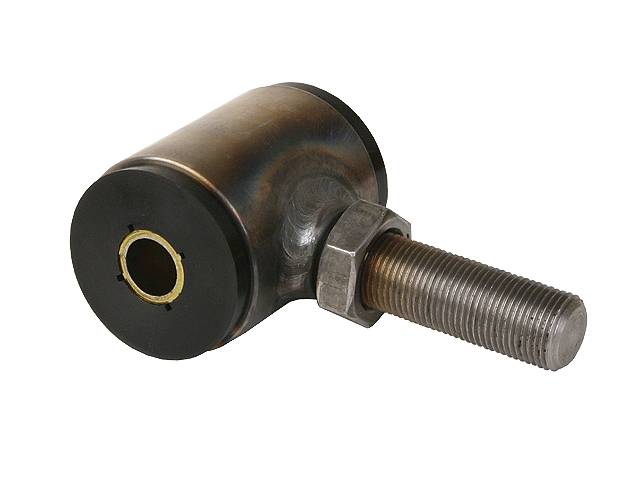

bushing threaded.jpg

Threaded 4 Link Bushing
Qty:




bushing end weld on.jpg

4 Link Bushing End
$15.00

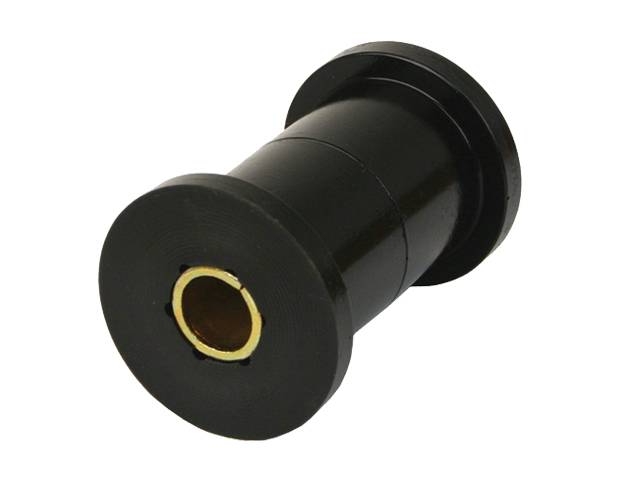

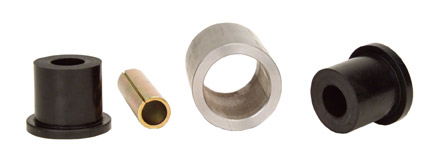

bushing poly.jpg
Fits a 1.5" I.D. tube. The outside flange of the bushing is 2" in diameter and has a flange thickness of 1/4" per side.
Accepts 9/16" Bolt.

Poly Bushing
$8.00
Qty:

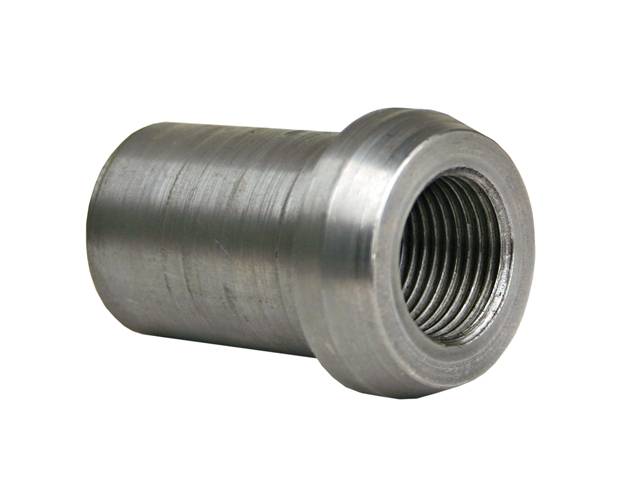

4 link threaded bung.jpg
1" Threaded Bung
$12.00
Qty:
